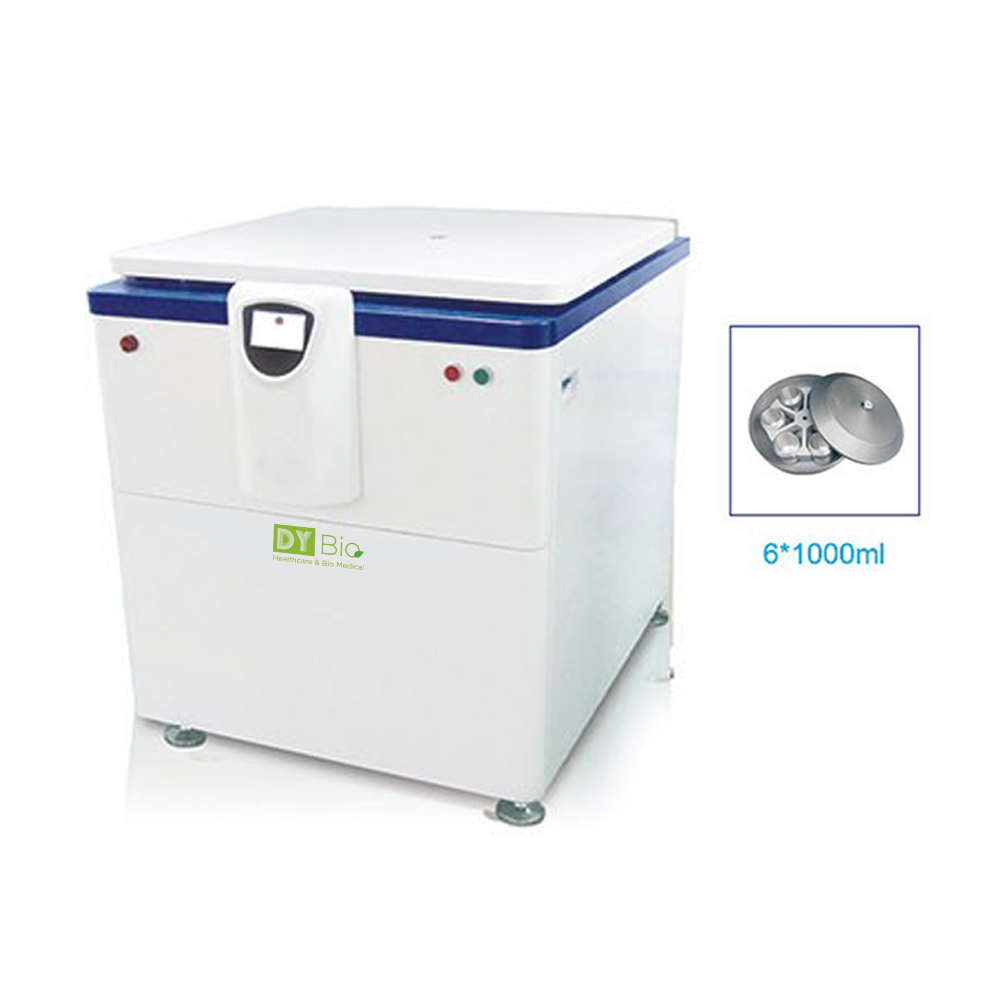

Centrifuge High Speed Refrigerated Large Capacity VH10RL

MODELS: VH10RL

FEATURES

  • LCD display, indicating setting parameters and actual parameters
  • AV motor, high torque and variable frequency, free from contamination caused by carbon dust
  • Import drive system to ensure steady and relaible operation
  • Over-speed and over-temperature protection, imbalance detection
  • Can set 16 procedures, parameters can be modified during running
  • Mute mechatonics motor door lock
  • 10 levels speed up and speed down control
  • Can indicate rotor speed ascending and declining curves, centrifugal integral curves and temperature curves

SPECIFICATIONS

Centrifuge Model: VH10RL
Max Capacity : 6x1000ml
Max Speed (rpm) : 10000
Max RCF : 15093xg
Speed Precision : +/- 50rpm
Temp Range : -20C to 40C
Temp Precision : +/-1C
Refrigeration System : CFC free , R404a
Timing Range : 0~99h59min
Noise : < 65dB
Consumption : 5700W
Power Supply : 380V, 50/60Hz
External Size (LxWxH)mm : 840x730x950
Package Size (LxWxH)mm : 1085x835x1165
Net & Gross Weight (kg) : 280 & 370

Rotors
To get list of compatible rotors and adapters, please contact us.
