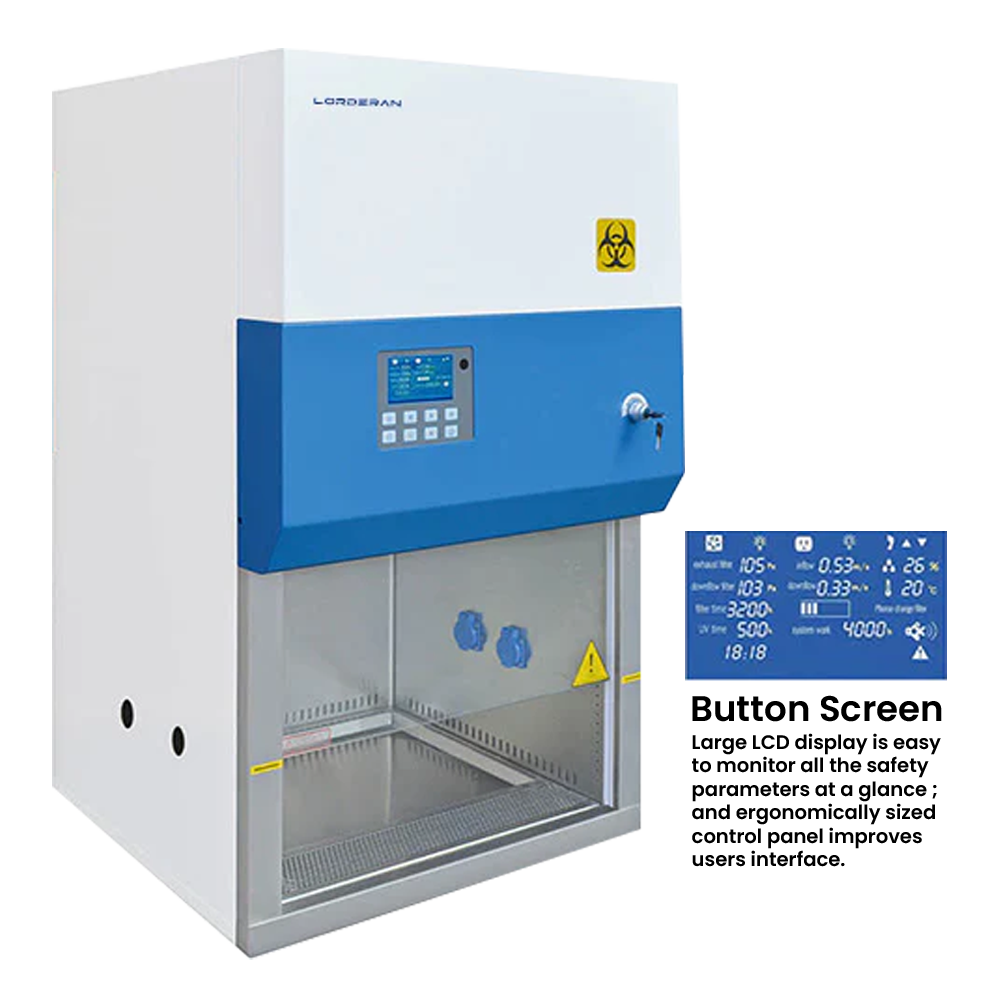

Biological Safety Cabinet Class II A2 (Basic)
FEATURES
Model:
11231BBC86
- Small dimension, save space
- Centrifugal fan, speed adjustable, H14 hepa filter
- Motorized front window for convenience, one hand operation
- Audio and visual alarm for abnormal air velocity flow, filter replacement, front window at unsafe height, high filter pressure
- Time reserve function; save 30 minutes waiting time after activating the cabinet and sterilization time after experiment
- Remote control 6 meters away from cabinet to protect operator under emergency
- Large LCD display
- Memory function in case of power failure
- Interlock function, UV lamp to front window, UV Lamp to blower and LED, blower to front window
- Work zone is made of 304 stainless steel and surrounded by negative pressure
- Waterproof sockets located on side panels to power up and use small devices inside cabinet
- UV Lamp (253.7 nanometers) for decontamination
SPECIFICATIONS
External Size: 700x650x1230mm(no base stand)
Internal Size: 600x500x540mm
Tested Opening: Safety Height 200mm
Max Opening: 370mm
Inflow Velocity: 0.53+/-0.025m/s
Downflow Velocity: 0.53+/-0.025m/s
Hepa Filter: 2 units with filter life indicator, 99.995% efficiency @ 3um
Front Window: Motorized, single-layer toughened glass 5mm, anti UV
Noise: <67dB UV Lamp: 15W, 2 units (UV timer, UV life indicator, emission of 253.7 nanometers for efficient decontamination LED Lamp: 2 units of 8W, >1000 Lux, power consumption 700W, 2 sockets with total load 500W
Display System: LCD Display
Control System: Microprocessor
Airflow System: 70% air recirculation, 30% air exhaust Visual & Audio Alarm: Filter replacement, window over height, abnormal airflow velocity, high filter pressure alarm
Material: Work zone – 304 stainless steel, Main body – Cold rolled steel with anti-bacteria powder coating
Work surface height: 750mm with optional base stand Power Supply: AC220V+/-10%, 50/60Hz OR 110V+/-10%, 60Hz
