Industry Applications of Cleanrooms and Best Practices
Part 1: Introduction
Cleanrooms are an essential part of industries such as pharmaceuticals, electronics, and manufacturing, where ultra-clean and controlled environments are absolutely necessary. These spaces, meticulously designed to maintain low levels of airborne particles, play an important role in safeguarding sensitive processes, products, and research outcomes. In sectors that rely on cleanrooms, even the smallest contaminant can cause defects, safety issues, or compliance problems, which could have significant financial and reputational repercussions.
Industries worldwide invest heavily in cleanroom technology to ensure that their products meet the highest standards of quality, precision, and reliability. Cleanrooms are used in sectors as diverse as biotechnology, medical device manufacturing, and even automotive manufacturing, where advanced technologies require environments free of dust and other particulates. This article provides a detailed overview of the various applications of cleanrooms and their roles in different industries, the science and technology that support cleanroom functionality, and the best practices for maintaining cleanroom equipment to optimise efficiency and compliance.
Part 2: The Science Behind Cleanrooms
Creating a cleanroom involves controlling a range of environmental factors, including particle count, temperature, humidity, and air pressure. This meticulous control is made possible by the sophisticated technologies and design features that define cleanroom environments and the applications of cleanrooms themselves.
Advanced HEPA Filtration Systems
The filtration system is at the heart of a cleanroom’s functionality. High-Efficiency Particulate Air (HEPA) filters are used extensively in cleanrooms to capture particles down to 0.3 microns with an efficiency of 99.97% or higher. This is crucial because particulates of this size are small enough to affect product integrity but large enough to be filtered effectively. In settings that demand even stricter contamination control, Ultra-Low Penetration Air (ULPA) filters are often used. These filters capture particles down to 0.12 microns with an efficiency of 99.999%, making them ideal for environments that need to maintain the highest cleanliness levels, such as semiconductor manufacturing.
HEPA and ULPA filters work by trapping particles through mechanisms like diffusion, interception, and impaction, depending on the particle size and flow rate. These filters are placed in a system of vents within the cleanroom’s HVAC setup, ensuring that every cubic foot of air within the cleanroom is continuously cleaned and recirculated to maintain optimal cleanliness. By constantly filtering and replacing the air, these systems ensure that contaminants are swiftly removed and that the space remains compliant with cleanliness standards.
Controlled Entry via Air Locks and Gown Rooms
Personnel and materials entering a cleanroom present a significant source of potential contamination. Thus, access is highly regulated, and entry systems like airlocks and gown rooms are designed to protect the cleanroom environment. Airlocks are small, enclosed spaces between the cleanroom and external environment, which create a pressurised buffer zone. This pressure differential acts as a barrier, preventing contaminants from migrating into the cleanroom.
Gown rooms are another essential part of the entry process, where personnel don cleanroom-specific attire such as coveralls, gloves, booties, and face masks to minimise particle shedding from skin and clothing. Strict gowning protocols are enforced to prevent the introduction of contaminants that could otherwise affect the cleanliness of the environment. These procedures are extremely important in industries where the risk of contamination must be reduced to virtually zero, such as pharmaceutical manufacturing, where a single contaminant could compromise an entire batch of product.
Use of Non-Particulating Construction Materials
The selection of materials in cleanroom construction plays a key role in maintaining a contaminant-free environment. Walls, floors, and ceilings are constructed using non-porous, non-particulating materials such as epoxy, vinyl, and stainless steel. These materials are resistant to particle shedding and can withstand the frequent, rigorous cleaning that cleanrooms require. Non-porous materials prevent dust, microbes, and other particles from embedding in surfaces, making it easier to maintain cleanliness standards.
Cleanroom flooring, for instance, is often made from specialised materials that can resist chemicals and withstand continuous wear and tear from foot traffic and equipment movement. Some flooring materials are also anti-static, which helps prevent the build-up of electrical charges that could damage sensitive electronic components in industries such as semiconductor manufacturing.
Enhanced Cleanliness with Air Showers
Air showers are enclosed chambers equipped with high-velocity air jets that blow off any remaining particles on personnel and materials before they enter the cleanroom. These jets are typically positioned at multiple angles within the shower to ensure that all surfaces, including the gown, gloves, and equipment being transported, are thoroughly decontaminated. By providing this final layer of protection, air showers help ensure that the risk of contaminants entering the cleanroom environment is minimised.
Air showers are particularly useful in high-level cleanroom classifications, where the presence of any particles—even from thoroughly gowned personnel—could compromise processes or products. Air showers are typically automated and timed to ensure that personnel remain inside for the duration required to remove potential contaminants effectively.
2.1. Applications of Cleanrooms in Various Industries
Pharmaceutical Industry
The pharmaceutical industry is heavily regulated, with stringent requirements around cleanliness and contamination control due to the sensitive nature of drug manufacturing. Cleanrooms are used across multiple stages of pharmaceutical production, from the initial formulation of drugs to filling and packaging. These cleanrooms are maintained at high cleanliness levels, with precise control over airborne particulate matter, microbial contamination, and even employee movements within the space.
In drug development and testing, the applications of cleanrooms involve providing an environment where variables can be carefully controlled. This is crucial for ensuring that test results are accurate and reliable, as even slight contamination can alter a drug’s effectiveness or safety profile. With biosafety cabinets, containment systems, and cleanroom monitoring systems, cleanrooms in pharmaceutical labs ensure that the conditions are safe for both the research staff and the materials they handle.
Biotechnology and Life Sciences
The biotechnology and life sciences sectors rely on cleanrooms to protect biological samples and experimental setups from contamination. Cleanrooms allow scientists to conduct research and development under conditions where variables are carefully controlled. For example, cell cultures, protein samples, and other sensitive biological materials must be kept in sterile environments to avoid contamination that could compromise experimental results.
These cleanrooms are also important for ensuring compliance with regulatory standards in the life sciences field, where any contamination could lead to compromised data or unrepeatable results. Cleanrooms used in biotechnology settings often feature advanced cleanroom monitoring systems, which track parameters such as temperature, humidity, and particle count to ensure that conditions remain within the acceptable range.
Medical Device Manufacturing
The applications of cleanrooms are critical in the production of medical devices, including surgical instruments, implants, and diagnostic equipment. Because these devices come into direct contact with the human body, sterility is paramount. Contaminants in medical devices could lead to patient infections or serious health risks. Medical device manufacturers, therefore, rely on cleanrooms to prevent any risk of contamination during the production process.
The use of particle counters, environmental monitoring, and sterile gowning protocols is common in cleanrooms within this sector. Furthermore, medical equipment suppliers work hand in hand with cleanroom equipment suppliers to procure materials and products that meet the cleanliness requirements of international regulatory bodies. This collaboration creates an assurance that medical devices are safe, reliable, and compliant with regulatory standards.
Automotive Industry
While cleanrooms are not commonly associated with automotive manufacturing, they play an important role in producing high-precision components like sensors, airbags, and electronic control units. As vehicles become more technologically advanced, the demand for cleanroom environments in automotive manufacturing has grown. Electronic and mechanical parts must be manufactured in cleanrooms to prevent contaminants from affecting sensitive systems.
The automotive industry also uses cleanrooms for research and development, particularly in the production of new safety systems and electronic technologies that require an ultra-clean environment to ensure proper function and durability.
Electronics and Semiconductor Manufacturing
The electronics and semiconductor industries rely on some of the strictest cleanroom standards due to the delicate nature of microchips and electronic components. Particles as small as a few microns can cause a defect in a semiconductor wafer, leading to costly rejections or malfunctions in electronic devices. Cleanrooms used in semiconductor fabrication are some of the most rigorously controlled environments, often maintained at ISO Class 3 or higher to prevent contamination.
These cleanrooms are designed with advanced air filtration systems, anti-static flooring, and strict gowning protocols to ensure that no particles interfere with the production process. The electronic components produced in these cleanrooms are used in everything from consumer electronics to critical applications like aerospace and defence, where even minor defects could have significant consequences.
Part 3: Things to Know About Cleanroom Operations

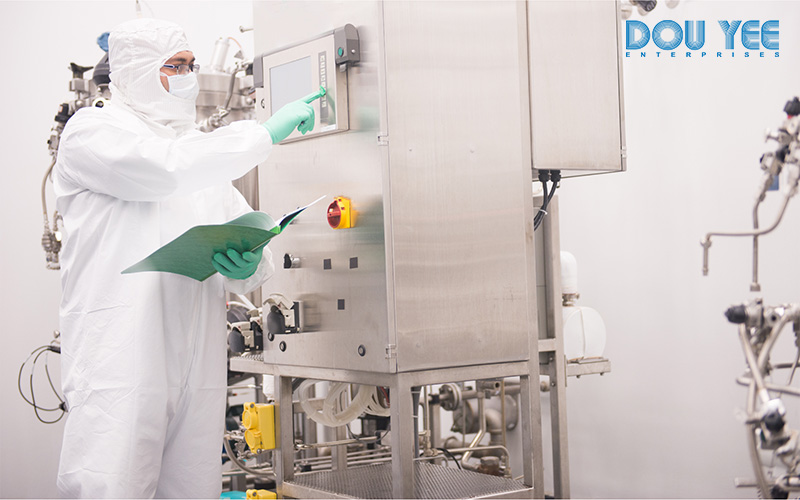

3.1. Best Practices for Maintaining Cleanroom Equipment
Maintaining a cleanroom requires a structured approach to equipment care and environmental control. Below are some best practices essential for cleanroom maintenance.
– Regular Cleaning and Disinfection: Cleanroom products and equipment should be cleaned with non-abrasive, lint-free wipes and solvents that do not introduce contaminants. Daily disinfection of surfaces and weekly deep cleaning ensure that the cleanroom maintains the specified cleanliness standards. Disinfectants must be carefully chosen to be effective against a broad spectrum of microorganisms without leaving harmful residues.
– Scheduled Preventive Maintenance: Preventive maintenance for cleanroom equipment includes lubrication, instrument calibration, and replacement of parts that are subjected to wear and tear. By proactively maintaining the cleanroom equipment, operators reduce the risk of unexpected downtime and ensure that all systems function at optimal levels.
– Calibration and Validation: Regular calibration and validation of equipment are essential for accurate measurement and control within a cleanroom. Instruments used in monitoring air quality, temperature, and humidity require regular checks to ensure that they provide accurate readings, as even minor deviations could affect cleanliness standards.
– Environmental Monitoring: Cleanrooms must be equipped with monitoring systems to track key parameters. This data allows operators to detect and resolve potential issues early, ensuring that the cleanroom continues to meet industry standards and regulatory requirements. Real-time monitoring systems provide alerts when conditions drift outside acceptable ranges, enabling swift corrective actions.
3.2. Trends and Innovations in Cleanroom Technology
The cleanroom industry is rapidly evolving with innovations that make operations safer, more efficient, and environmentally sustainable.
– Automated Operations: Automation in cleanrooms minimises human involvement, reducing the risk of contamination. Robotic arms, automated guided vehicles, and other robotic tools are now capable of performing tasks such as moving materials or performing assembly, which reduces the potential for human-introduced contamination.
– Data-Driven Monitoring Solutions: Internet of Things (IoT) devices and advanced data analytics tools are transforming cleanroom monitoring by allowing for continuous, real-time data collection. This data is used to create predictive maintenance schedules, optimise air filtration performance, and improve energy efficiency. These innovations enable companies to maintain high cleanliness standards and reduce operational costs.
– Sustainable Cleanroom Practices: As companies seek to reduce their environmental impact, sustainable materials and practices are becoming more prevalent in cleanroom design. Renewable construction materials and low-VOC paints are now used, while advanced HVAC systems reduce energy consumption by optimising airflow and temperature control.
– Energy-Efficient Lighting and HVAC: LED lighting and smart HVAC systems reduce energy use without compromising the cleanliness or functionality of the cleanroom. These technologies also help companies meet sustainability goals and reduce their carbon footprint.
3.3. Questions You May Have
How often should I clean my cleanroom?
Maintaining cleanliness is crucial in a cleanroom environment. Here are some general guidelines for cleaning frequencies:
– Daily Cleanroom Cleaning: Before each shift, mop floors with a damp mop and vacuum with a HEPA filter. Wipe down work areas and surfaces at the end of each shift.
– Weekly Cleanroom Cleaning: Mop floors with cleanroom-specific detergents, wipe walls with a damp sponge, and vacuum dry to remove particles.
– As Needed: Clean ceilings and light lenses with detergent and distilled water as residues build up, and replace sticky mats promptly.
What are the key differences between a cleanroom and a controlled environment?
Cleanrooms are a specialised subset of controlled environments designed to minimise airborne particles and other contaminants. Controlled environments regulate parameters like temperature and humidity but may not adhere to strict particle control standards required in cleanrooms.
Which type of cleanroom, hardwall or softwall, achieves a higher level of cleanliness?
Hardwall cleanrooms with rigid structures are often easier to clean and can withstand frequent sanitation, making them suitable for high cleanliness levels. Softwall cleanrooms are flexible and cost-effective but require diligent maintenance to avoid particle shedding. Both types, however, can achieve high cleanliness when designed and maintained properly.
The importance of cleanrooms in various industries cannot be understated. By controlling particle levels, temperature, and other environmental factors, cleanrooms enable the production of high-quality, reliable products and ensure that sensitive research can be conducted without risk of contamination.
Having cutting-edge cleanroom environmental control equipment will also go a long way in the optimal maintenance of your cleanrooms, and that is certainly an area that Dou Yee can help you with. An established brand since 1982, Dou Yee is a reliable cleanroom equipment supplier, providing various industries with high-quality cleanroom products—from air particle counters to cleanroom flooring—to keep cleanrooms in excellent condition.
Contact us today to find out how we can support your cleanroom needs and help you maintain the highest levels of quality and efficiency.
